Raymarine

" DRAGONFLY 5 Pro "

 Chartplotter/Fishfinder

 photo Dragonfly 5 C Map_zpsiciwooxp.jpg

Comes with C-Map Australian MAPPING CARD

Transom Mounted Transducer

 photo Updated_Dragonfly_banner_zpsf6f75fdc.jpg

Fish like a tournament pro with the Dragonfly-5 Pro.

All the features of Dragonfly-5 PRO with a big and bright 5" all weather optically bonded LCD display.

Change your underwater view and catch more fish with the Dragonfly 5 wide-spectrum CHIRP DownVision™ technology.

Easily identify fish and underwater objects with photo-like sonar images. Dragonfly’s all-weather, high-definition colour LCD display looks sharp from every angle. Step up to a smarter species of sonar with Dragonfly.

Dragonfly 5 Pro with Australia wide C-Map MAPPING CARD INCLUDED.

Features:

  • Super-bright LCD
  • All-Weather Bonded Display
  • Fish-Targeting Sonar
  • 10Hz GPS
  • CHIRP Technology
  • DownVision™Sonar

Specifications:

  • Screen size: 5''
  • Screen resolution (pixels): 800 x 480
  • Aspect Ratio: Dragonfly 5: 15:9
  • CHIRP Sonar: Yes
  • CHIRP DownVision: Yes
  • All weather viewable: Yes
  • Raymarine WiFish app: Yes
  • Android and iOS Compatible: Yes
  • Social Media Uploading: Yes
  • Built in GPS: Yes
  • LightHouse Chart Compatibility: Yes
  • Navionics Chart Compatibility: Yes
  • C-MAP Chart Compatibility: Yes
  • MicroSD Card Reader: Yes
  • Virtual View: Yes
  • Dual Channel Sonar: Yes
  • Depth Range 183m (600ft) CHIRP DownVision™ and CHIRP Sonar Models 275m (900ft)
  • Nominal Supply Voltage: 12 V DC
  • Operating Voltage Range: 10.8 V DC to 15.6 V DC
  • Waterproofing Standard: IPX6 and IPX7

GPS & Cartography:

  • GPS Channels: 72
  • Chart Compatibility: LightHouse vector and raster charts | Navionics Gold, Plus, Hotmaps and SonarChart | C-MAP by Jeppesen
  • Chart Media: MicroSD

Sonar:

  • Sonar Type: CHIRP Sonar
  • Sonar Channels: 2 Channels - Sonar conical beam + DownVision™ wide fan beam
  • Depth Range: 600 ft (183m) Both Sonar and DownVision™ Channels
  • Warranty: 1 Year AUSTRALIAN WARRANTY

Unit Dimensions:

 photo Dragonfly 4 Measurements Mr Boats_zpsbrtlr1ef.jpg



Care points:

Allow of minimum of 120 mm (4.7 in.) behind the unit for inserting and removing an MicroSD card
Allow enough room for unit angle adjustment.
Allow enough head room to remove the unit from the bracket.

Transducer Dimensions:

 photo Transducer Diamensions Mr Boats_zpsnzxzgoug.jpg

Serious Technology For Everyone
  • Whether you are a professional guide or weekend bass angler, you will appreciate Dragonfly’s cutting edge sonar performance and simple operation. Simply dial through sonar and GPS displays and quickly become a Dragonfly expert.
  • Easy Screen Switcher
  • Automatic Sonar Optimisation; No Adjustment Required
  • Unique dual-beam CHIRP transducer - CHIRP sonar and CHIRP DownVision™ in one
  • Just Power On and Fish!

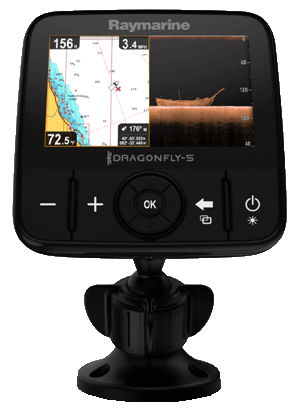

 photo Dragonfly 5 300_zpsdij2cwj3.gif

CHIRP Sonar Technology

Unlike conventional imaging sonars that transmit a single frequency with each pulse, Dragonfly’s DownVision™ sonar uses CHIRP technology to transmit across a wide spectrum of sonar frequencies with each pulse – the result is much higher resolution, life-like sonar images.

 photo 46063_pic2_zps6eb262c8.jpg

Rugged enclosure built to IPX6 and IPX7 waterproof and submersion standards

  • Single power and transducer connector with thumb-friendly locking collar
  • Optional Thule locking cylinder for enhanced security
  • Tilt and swivel holster with quick release
  • An optional flush mounting kit is also available.
1 X Raymarine Dragonfly 5 Pro "Australian Model "
  • C-Map Mapping Card
  • Display unit
  • Locking collar
  • Pivot ball
  • M6 Hex bolt
  • Display bracket base
  • x3 M5 pozi-drive bolt
  • x3 M5 washer
  • x3 M5 locking nut
  • Ratchet arm
  • Mounting bracket
  • M5 Hex ratchet bolt
  • Ratchet plate
  • Compression washer
  • M5 washer
  • M5 locking nut
  • x3 Self tapping screws
  • Documentation
  • Transducer with combined power cable
